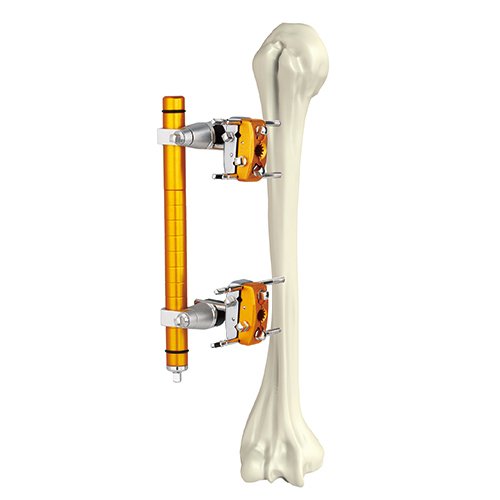

Humeral Shaft External Fixator
4.0(3 reviews)- Humeral Shaft External Fixator includes Compression Distraction Tube, Tube-Rod Coupling, 4-Hole Pin Clamp, Post, and Apex Pin
- Designed for stabilizing and supporting the humeral shaft
- Compression Distraction Tube measures 15mm, while Apex Pin is self-drilling at 4*120mm
- Tube-Rod Coupling sizes 15/5mm for secure assembly
- Includes necessary components for external fixation of the humeral shaft
- SKU
- 7100-11
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Tags
External Fixator Hoffman Type
Humeral Shaft External Fixator
Complete external fixation system designed for stabilizing and supporting the humeral shaft. Includes compression distraction tube, tube-rod coupling, pin clamps, posts, and self-drilling apex pins for secure assembly and reliable fixation in proximal and mid-shaft humerus fractures.
Ordering Ref.
7100-11
Configuration5-Component System
MaterialStainless Steel
ApplicationHumeral Shaft Fixation
OEM customization available. Contact sales for bulk orders and institutional pricing.
Clinical overview
The Humeral Shaft External Fixator is a modular external fixation system engineered for precise stabilization of proximal and mid-shaft humerus fractures. This system combines a 15mm compression distraction tube with dual tube-rod couplings, allowing controlled axial compression and distraction during the healing phase. The four-hole pin clamps accommodate 3/4mm pins, providing multi-planar stability, while the 5mm posts with 30-degree angulation enable flexible frame configuration to accommodate individual anatomical variations and surgical preferences.
The inclusion of four self-drilling apex pins (4×120mm) ensures rapid percutaneous pin placement with minimal soft tissue trauma. This complete kit approach reduces operative time and simplifies inventory management, making it ideal for trauma centers and orthopedic departments managing complex humeral shaft injuries.
Key features & surgeon benefits
Fixation
Robust Multi-Planar Stability
- Dual 4-hole pin clamps for enhanced rotational control
- 15mm compression distraction tube enables controlled axial loading
- Self-drilling apex pins minimize soft tissue disruption
Workflow
Rapid Assembly & Deployment
- Complete 5-component kit reduces setup time
- Standardized 15/5mm coupling ensures compatibility
- Modular design allows frame customization intraoperatively
Economics
Cost-Effective Trauma Solution
- Single kit purchase covers standard humeral fixation cases
- Reusable stainless steel components reduce per-case costs
- Simplified inventory management for high-volume centers
Customisation
Adaptable to Surgical Needs
- 30-degree post angulation accommodates anatomical variations
- Modular coupling system allows frame extension or modification
- OEM customization available for institutional protocols
Technical specifications
| Indications | Humeral shaft fractures, proximal humerus fractures, fracture stabilization and distraction |
|---|---|
| Sizes / range | Compression Distraction Tube 15mm; Apex Pin 4×120mm self-drilling; Tube-Rod Coupling 15/5mm; Post 5mm/30° |
| Material | Stainless Steel (surgical grade) |
| Sterilisation | Steam sterilizable (autoclavable) |
| Packaging | Complete kit in sterile or non-sterile configuration |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 7100-1101 | Compression Distraction Tube 15mm | 1 |
| 7100-1102 | Tube-Rod Coupling 15/5mm | 2 |
| 7100-1103 | 4-Hole Pin Clamp (3/4mm Pin) | 2 |
| 7100-1104 | Post 5mm/30 Degree | 2 |
| 7100-1105 | Apex Pin Self-drilling 4×120mm | 4 |
Get in touch for pricing & availability
Contact our sales team to request a formal quote, discuss clinical applications, or arrange a product demonstration. We offer flexible ordering options and institutional pricing for high-volume centers.
Phone: (302) 613-4333
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
4.0· 3 reviewsClean, effective humeral frame
The pin clamps gripped the diaphysis firmly and the bar stayed rigid across the fracture. A tidy construct that kept the arm stable without excess bulk.
Dr. Estelle Moreau, MD, FRCS (Orth)Verified buyerJun 1, 2024
Does the job well
Simple to apply and the frame held reduction on an open humeral shaft injury through the initial healing phase. No slippage at the clamps at follow-up.
Dr. Harold Quinn, MD, FAAOSSep 11, 2025
