- Complete set for external fixation of forearm fractures
- Includes rod-rod coupling, pin clamps, posts, connecting rod, and apex pins
- Designed for stability and support during the healing process
- High-quality materials ensure durability and reliability
- Easy to assemble and use for medical professionals
- Suitable for various types of forearm fractures and injuries

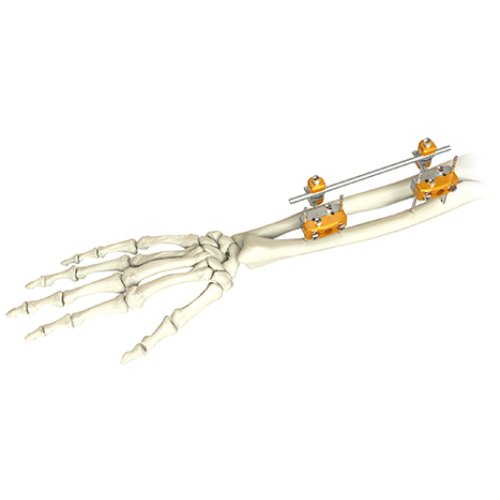

Complete external fixation system designed for stable reduction and support of forearm fractures. Engineered with precision-machined components and self-drilling apex pins for reliable bone fixation during the healing process.
The Forearm External Fixator is a comprehensive system for external skeletal fixation of forearm fractures, particularly suited for complex, comminuted, or open fracture patterns. The modular design allows surgeons to customize frame configurations based on fracture geometry and patient anatomy, ensuring optimal stability during the critical healing phase.
High-quality stainless steel and aluminum components provide excellent strength-to-weight ratio, while self-drilling apex pins enable rapid percutaneous insertion with minimal soft tissue trauma. The system is fully autoclavable and compatible with standard surgical workflows in trauma and orthopedic centers.
| Indications | Forearm fractures, complex fracture patterns, comminuted fractures, open fractures requiring external stabilization |
|---|---|
| Sizes / range | 3–4 mm apex pins, 5 mm connecting rods, 200 mm aluminum rod length |
| Material | Stainless steel (clamps, posts, couplings), aluminum (connecting rod), self-drilling steel pins |
| Sterilisation | Steam autoclave (121°C, 15 minutes at 15 psi) |
| Packaging | Sterile, single-use trays or reusable instrument sets |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| 7100-0401 | Rod-Rod Coupling (5mm Rod) | 2 |
| 7100-0402 | 4-Hole Pin Clamp (3/4mm Pin) | 2 |
| 7100-0403 | Post 0 Degree 5mm | 2 |
| 7100-0404 | Aluminum Connecting Rod 5×200mm | 1 |
| 7100-0405 | Apex Pin Self-drilling 3×120mm | 4 |
Contact our sales team to discuss your forearm fixation requirements, request a detailed quote, or arrange a product demonstration. We offer flexible ordering options and rapid delivery to trauma centers and surgical facilities worldwide.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
The small-diameter pins and short bars suited the radius nicely and the construct held length across a comminuted distal fracture. Low profile kept it out of the patient's way.
Dr. Clara Whitmore, MD, FRCS (Orth)Verified buyerDec 26, 2024
Stability was good once built, though clearance between the two pin clamps was a little cramped on a small forearm. Reduction held well regardless.
Dr. Anita Roy, MDMar 7, 2025
Clamp increments are fine enough to dial in reduction on a slender radius and the frame stayed rigid through early mobilisation. Excellent for bridging the wrist.
Dr. Yusuf Demir, MD, FAAOSJan 2, 2025

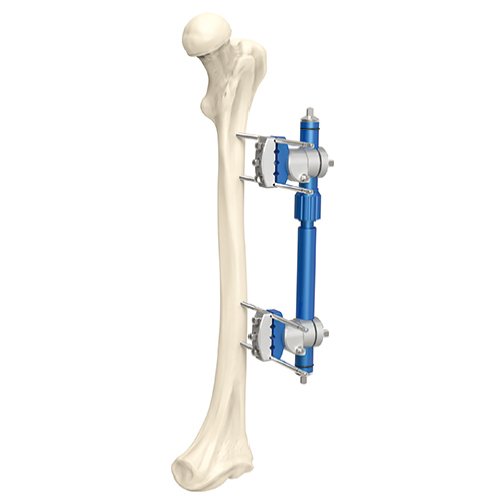

- Complete femoral external fixator system - Includes tube-rod coupling, compression distraction tube, pin clamp, angled post, and self-drilling apex pins - Easy ordering for patients and orthopedic surgeons - Quality components for effective fixation - Quick delivery in 7 days
- Comprehensive femoral external fixator kit - Includes tube-rod coupling, compression distraction tube, various clamps and pins - Equipped with 30-degree angled posts for secure fixation - Apex pins provided are self-drilling for convenience - Ideal for orthopedic surgeons and patients requiring femoral fracture stabilization

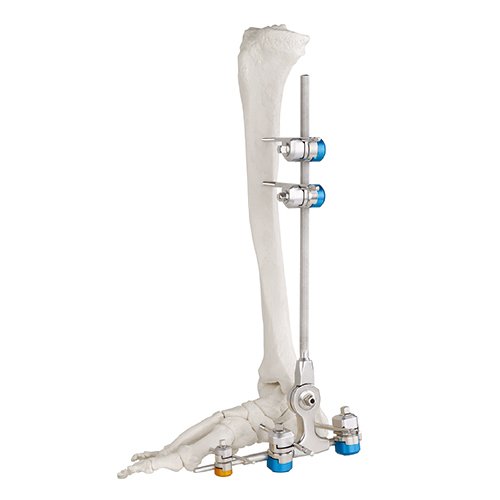

- Includes Rod-Rod Coupling, Rod-Pin Coupling, Ankle Joint, Apex Pin Self-drilling - Designed for external fixation of the ankle joint - Easy to order and receive within 7 days - High-quality materials for optimal performance - Ideal for orthopedic surgeons and patients in need of ankle joint fixation
- Complete set for knee joint external fixation - Includes rod-rod and rod-pin couplings - Features a 30 degree angled post for stability - Comes with self-drilling apex pins for easy application - Quick delivery in 7 days for patient and surgeon convenience

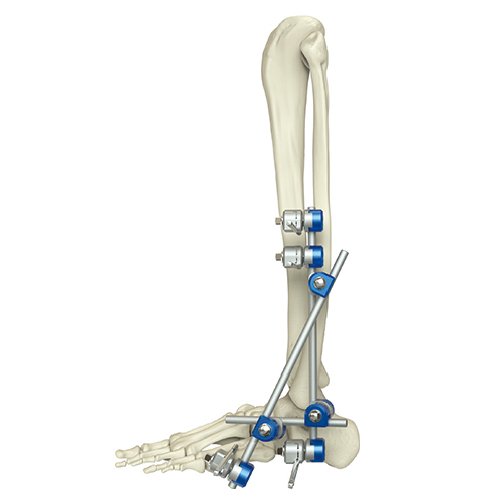

- Ankle Joint External Fixator for stabilizing and supporting ankle injuries - Includes Rod-Rod Coupling, Rod-Pin Coupling, Aluminum Connecting Rods, and Apex Pins - High-quality materials for durability and effectiveness - Easy to order for patients and orthopedic surgeons - Fast 7-day delivery for quick treatment and recovery

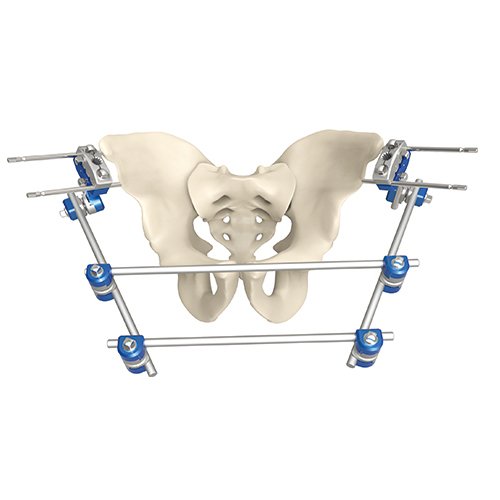

- Complete set for pelvic external fixation surgery - Includes rod-rod coupling, pin clamp, angled post, connecting rods, and self-drilling pins - High-quality materials for reliable performance - Easy ordering process for patients and surgeons - Fast delivery within 7 days

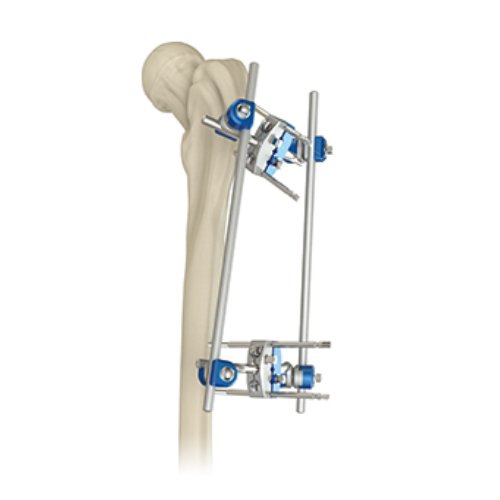

- The Proximal Femur External Fixator includes a Rod-Rod Coupling (8mm Rod) for stabilization. - It also features a 5-Hole Pin Clamp (5/6mm Pin) to secure the fixation. - With 30 Degree Angled Post 8mm for optimal positioning during surgery. - Includes Aluminum Connecting Rods in 8*300mm size for structural support. - Comes with Apex Pins (5*150mm and 5*180mm) for additional reinforcement.
