Neat frame for open humeral fractures
Low profile enough to sit comfortably along the arm and the pin clamps gripped well in diaphyseal bone. Held reduction while the soft tissues settled.
Dr. Adrian Cole, MD, FACSVerified buyerApr 24, 2025
Orthopedic Drills

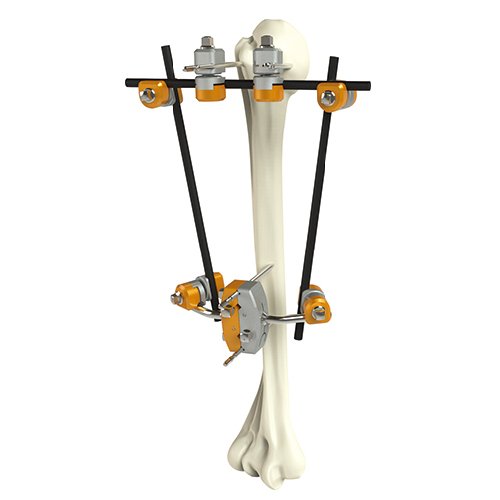

Humeral Shaft External Fixator
4.3(3 reviews)- Complete external fixator system for humeral shaft fractures
- Includes rod-rod coupling, rod-pin coupling, pin clamp, connecting rods, post, and apex pins
- Rod-rod coupling for 5mm rods (4 pieces) and rod-pin coupling for 3/4mm pin and 5mm rod (2 pieces)
- 4-hole pin clamp for 3/4mm pins (1 piece)
- Aluminum connecting rods in 250mm and 200mm lengths (2 and 1 piece, respectively)
- Post with 5mm diameter and 30-degree angle (2 pieces)
- Self-drilling apex pins for secure fixation (4 pieces)
- SKU
- 7100-10
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Tags
External Fixator System
Humeral Shaft External Fixator
Complete external fixator system for humeral shaft fractures. Includes rod-rod coupling, rod-pin coupling, pin clamp, connecting rods, posts, and apex pins for secure, stable fixation in proximal and mid-shaft humeral trauma.
Ordering Ref.
7100-10
ConfigurationComplete System
MaterialAluminum / Stainless Steel
ApplicationHumeral Shaft Trauma
OEM customisation and component sourcing available on request.
Clinical overview
The Humeral Shaft External Fixator is a modular, Hoffman-type system designed for the management of complex humeral shaft fractures, including open fractures, comminuted injuries, and cases requiring temporary or definitive stabilisation. The system provides rigid fixation through a combination of percutaneous pins and connecting rods, allowing early mobilisation and reducing complications associated with prolonged immobilisation.
The complete kit includes all necessary coupling mechanisms, clamps, and fixation elements, enabling surgeons to configure the frame according to fracture pattern and patient anatomy. Self-drilling apex pins ensure secure cortical purchase, while the modular rod-rod and rod-pin couplings provide flexibility in frame design and adjustment during the healing process.
Key features & surgeon benefits
Stability
Rigid Fixation Architecture
- Dual-rod configuration for enhanced torsional and bending resistance
- Self-drilling apex pins with 4×120mm dimensions for secure cortical engagement
- Modular coupling system allows multi-planar adjustment and frame customisation
Workflow
Surgeon-Friendly Assembly
- Pre-assembled kit reduces operative time and setup complexity
- Intuitive rod-rod and rod-pin coupling mechanisms enable rapid frame configuration
- 4-hole pin clamp accommodates multiple pin orientations for anatomic flexibility
Economics
Cost-Effective Trauma Solution
- Complete system eliminates need for multiple separate purchases
- Reusable aluminum rods and couplings reduce per-case material costs
- Durable construction supports high-volume trauma centres and teaching institutions
Versatility
Adaptable to Fracture Complexity
- Modular design accommodates simple, comminuted, and segmental fractures
- Multiple rod lengths (250mm and 200mm) support varied patient anatomy
- Compatible with standard 3/4mm pin systems for seamless integration into existing trauma protocols
Technical specifications
| Indications | Humeral shaft fractures, proximal and mid-shaft trauma, open fractures, comminuted injuries |
|---|---|
| Sizes / range | 3/4mm pins, 5mm rods (250mm and 200mm lengths), 4×120mm apex pins |
| Material | Aluminum connecting rods, stainless steel couplings and clamps, self-drilling steel apex pins |
| Sterilisation | Autoclavable (121°C, 15 minutes at 15 psi) |
| Packaging | Complete system kit in sterile, reusable instrument tray |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 7100-1001 | Rod-Rod Coupling (5mm Rod) | 4 |
| 7100-1002 | Rod-Pin Coupling (3/4mm Pin, 5mm Rod) | 2 |
| 7100-1003 | 4-Hole Pin Clamp (3/4mm Pin) | 1 |
| 7100-1004 | Aluminum Connecting Rod 5×250mm | 2 |
| 7100-1005 | Aluminum Connecting Rod 5×200mm | 1 |
| 7100-1006 | Post 5mm/30 Degree | 2 |
| 7100-1007 | Apex Pin Self-drilling 4×120mm | 4 |
