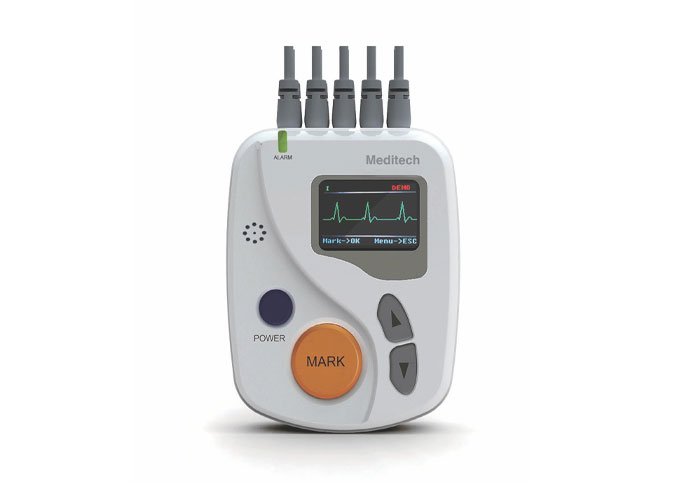

Holter ECG Monitor Heart Rec ECO (Copy)

With the clear operating interface, analysis software is easy for you to use, which can play back and classifying dispose ECG waveform stored in recorder and achieve kinds of analysis functions, such as arrhythmia, HRV, QTD, TWA

Long interval module Atrial flutter module Atrial fibrillation module etc.and multiplicative User-defined templates could almost identify every kind of pathological wave forms

Scale voltage: 1mV±5% Standard Sensitivity: 10mm/mV±5% Noise level: ≤30μV p-p CMRR: ≥60dB Frequency response: 10Hz as benchmark 0.5Hz～55Hz;-3dB Time constant: Time constant≥3.2s Scan speed: 25mm/s±5% Enduring polarization voltage: add ±300mV DC polarization voltage the sensitivity shift is no more than ± 10% Least measure signal: 50 μV p-p Interfere between channels: scan track deflexion (result from interfere between channels) ≤0.5mm 12-lead isochronous ECG sample Product safety type: Type B (Internally powered) Size: 80.5mm (L) *59.5mm (W) *22mm (H) Net Weight: 61.5g (Without battery)

Environment Condition and Applicable People

The environment requirement of operation transport and storage for this System.

Operation Environment

Environment Temperature: 10℃~45℃ Relative Humidity:             ≤85% no condensation. Atmospheric pressure :     860hPa-1060hPa Power Supply:                   DC 1.5V

1Application Environment:

No vibration dust corrosive or combustible matter. No extreme temperature and humidity.

Transport and Storage Environment

Environment Temperature:   -40℃~+55℃ Relative Humidity:           ≤85% Atmospheric pressure:    860hPa-1060hPa

Standard: EKG Cable       ................ 1Pcs Leather Case ................... 1Pcs Battery   ........................... 2Pcs SD Card    ....................... 1Pcs Cleaning Cloth  ................ 1Pcs Options: Rechargable Battery Charger (Panasonic)
