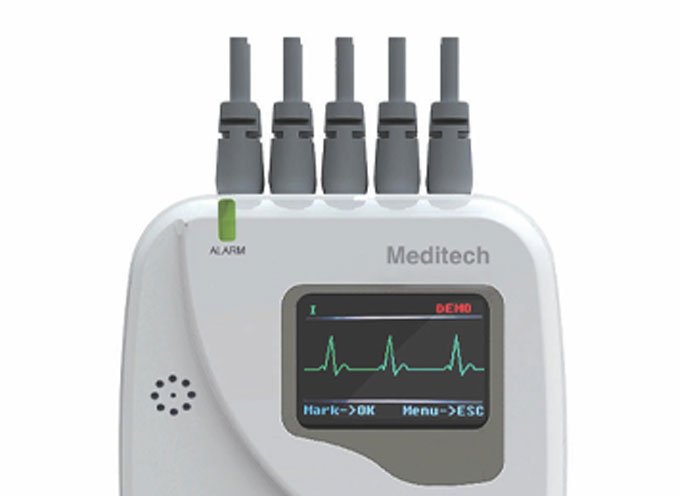

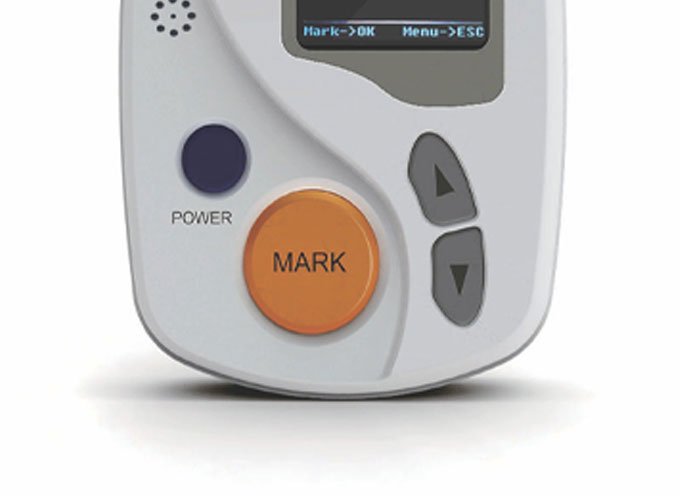

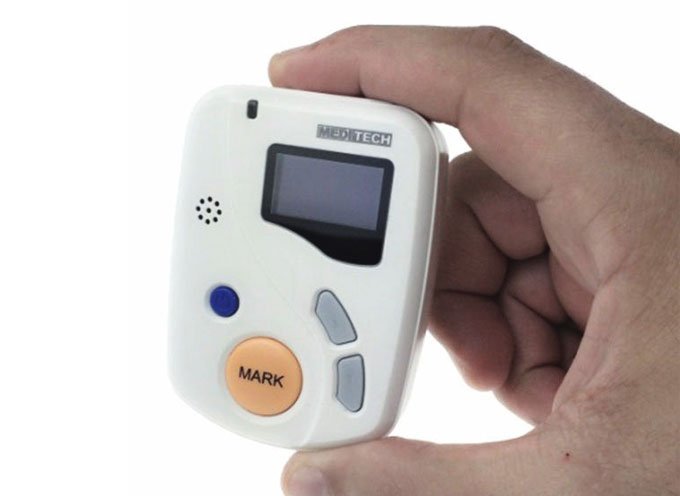

Holter ECG Monitor Heart Rec ECO

With the clear operating interface, analysis software is easy for you to use, which can play back and classifying dispose ECG waveform stored in recorder and achieve kinds of analysis functions, such as arrhythmia, HRV, QTD, TWA

Long interval module
Atrial flutter module
Atrial fibrillation module etc.and multiplicative User-defined templates could almost identify every kind of pathological wave forms

Scale voltage: 1mV±5%
Standard Sensitivity: 10mm/mV±5%
Noise level: ≤30μV p-p
CMRR: ≥60dB
Frequency response: 10Hz as benchmark 0.5Hz～55Hz;-3dB
Time constant: Time constant≥3.2s
Scan speed: 25mm/s±5%
Enduring polarization voltage: add ±300mV DC polarization voltage the sensitivity shift is no more than ± 10%
Least measure signal: 50 μV p-p
Interfere between channels: scan track deflexion (result from interfere between channels) ≤0.5mm
12-lead isochronous ECG sample
Product safety type: Type B (Internally powered)
Size: 80.5mm (L) *59.5mm (W) *22mm (H)
Net Weight: 61.5g (Without battery)

Environment Condition and Applicable People

The environment requirement of operation transport and storage for this System.

Operation Environment

Environment Temperature: 10℃~45℃
Relative Humidity:             ≤85% no condensation.
Atmospheric pressure :     860hPa-1060hPa
Power Supply:                   DC 1.5V

1Application Environment:

No vibration dust corrosive or combustible matter.
No extreme temperature and humidity.

Transport and Storage Environment

Environment Temperature:   -40℃~+55℃
Relative Humidity:           ≤85%
Atmospheric pressure:    860hPa-1060hPa

Standard:

EKG Cable       ……………. 1Pcs
Leather Case ………………. 1Pcs
Battery   ……………………… 2Pcs
SD Card    ………………….. 1Pcs
Cleaning Cloth  ……………. 1Pcs

Options:

Rechargable Battery
Charger (Panasonic)
