Straight Type External Fixator
- External fixator with straight type design
- Available in multiple sizes: XS, S, M, L, XL
- Includes pins, hex wrenches, and screwdrivers
- Customizable dimensions upon purchase
- Secure and stable fixation for orthopedic procedures
- SKU
- 6100-03000
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Straight Type External Fixator
Precision-engineered external fixator with straight design for stable, secure orthopedic fixation. Available in five sizes (XS to XL) with complete instrumentation. Customizable dimensions to meet your specific surgical requirements.
Clinical overview
The Straight Type External Fixator is a versatile, modular system designed for secure skeletal fixation in trauma and orthopedic procedures. Its straight configuration provides excellent stability and ease of application across a wide range of fracture patterns and anatomical sites. The system is available in five graduated sizes to accommodate pediatric through adult patient populations.
Each fixator is supplied with precision-engineered pins, hex wrenches, and screwdrivers matched to the selected size. The modular design allows for rapid assembly and adjustment in the operating theater, reducing operative time while maintaining rigorous fixation quality. Customizable dimensions ensure optimal fit for your specific surgical protocols and patient demographics.
Key features & surgeon benefits
Rigid Fixation
- Straight design minimizes stress concentration
- Four-pin configuration per size ensures multi-planar control
- Proven biomechanical performance in high-load applications
Rapid Assembly
- Intuitive modular components reduce setup time
- Matched instrumentation (hex wrenches, screwdrivers) included
- Clear size designation (XS–XL) simplifies inventory and selection
Cost-Effective Solution
- Competitive pricing with comprehensive instrumentation
- Durable surgical steel construction minimizes replacement costs
- Five-size range reduces need for multiple system purchases
Tailored Dimensions
- Specify custom dimensions at order confirmation
- Accommodates institution-specific surgical protocols
- Flexible sizing for pediatric through adult applications
Technical specifications
| Indications | Fracture fixation, trauma stabilization, limb lengthening, orthopedic procedures |
|---|---|
| Sizes / range | XS, S, M, L, XL (customizable dimensions available) |
| Material | Surgical steel (pins, frame, instrumentation) |
| Sterilisation | Autoclavable |
| Packaging | Complete kit with pins, hex wrenches, and screwdrivers |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Size | Pin Specification | Instrumentation | Qty |
|---|---|---|---|
| XL / L | 6 × 150 mm | 6 mm Hex Wrench, 6 mm Screwdriver | 4 PCS |
| M | 6 × 130 mm | 6 mm Hex Wrench, 6 mm Screwdriver | 4 PCS |
| S | 5 × 120 mm | 6 mm Hex Wrench, 6 mm Screwdriver | 4 PCS |
| XS | 4 × 100 mm | 4 mm Hex Wrench, 4 mm Screwdriver | 4 PCS |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss customization options, or arrange a product demonstration. We are ready to support your surgical program with fast delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

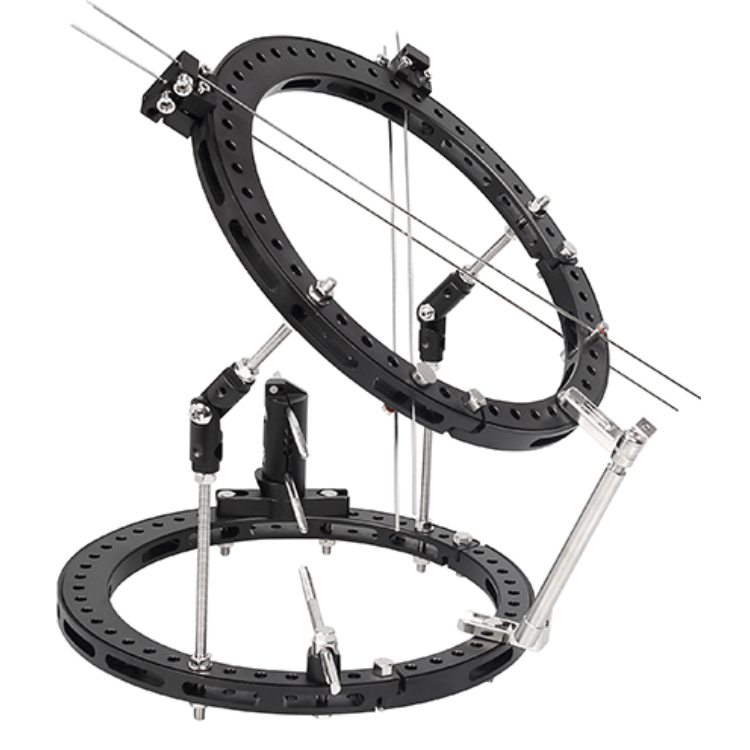

XCaliber External Fixator Transparant Ring Frame Combination (PEEK)
- XCaliber External Fixator with transparent ring frame design - Made from high-quality PEEK material for durability - Provides stability and support for bone fracture healing - Easy to assemble and adjust for personalized fit - Lightweight and comfortable for extended wear - Designed for post-operative care and rehabilitation - Suitable for various orthopedic applications

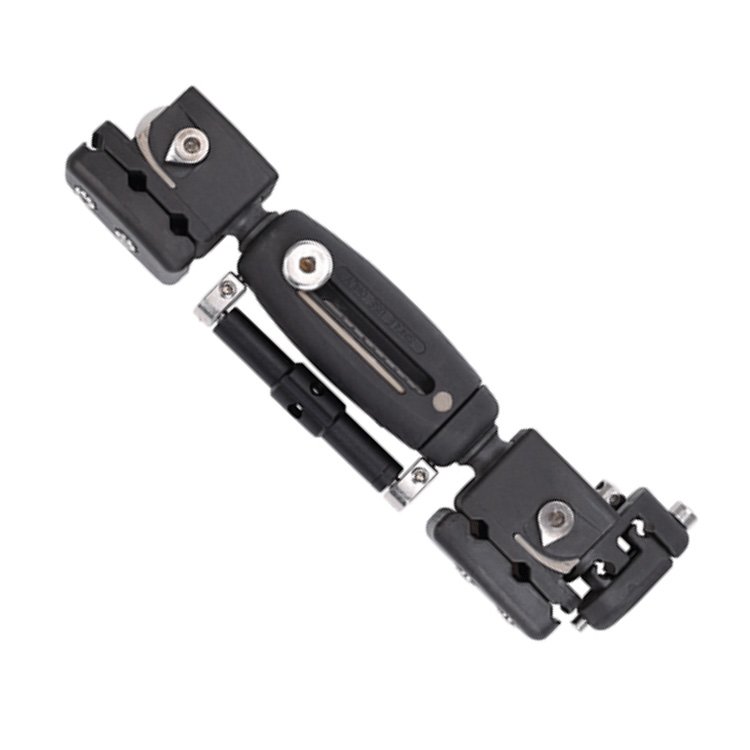

XCaliber External Fixator Hybrid Meta-Diaphyseal Fixator (PEEK)
- XCaliber External Fixator Hybrid Meta-Diaphyseal Fixator made of PEEK material - Available in large and medium sizes - Includes self-tapping screws in various lengths for secure fixation - Comes with T-wrench for bone screws and spanner for easy application - Hybrid design for meta-diaphyseal fractures

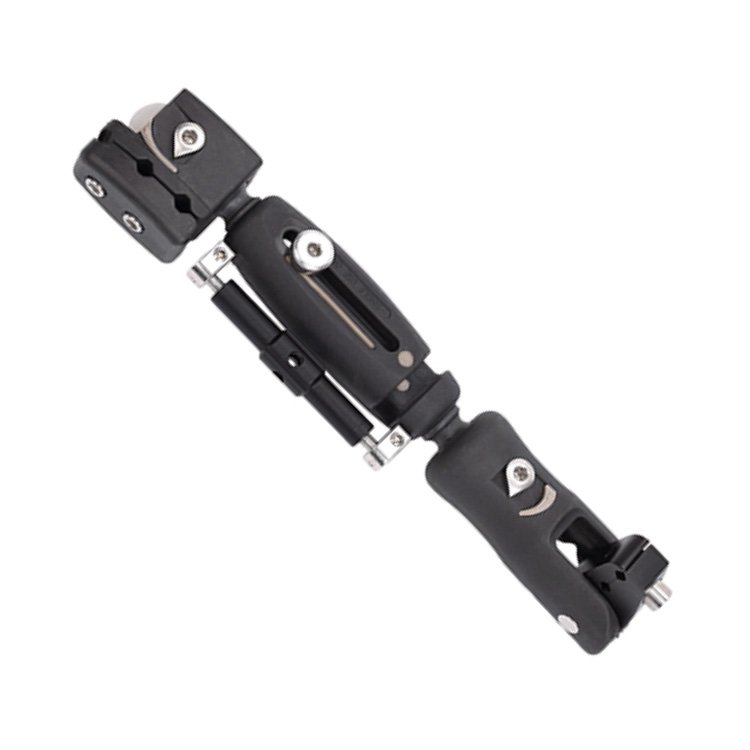

XCaliber External Fixator Hybrid Articulated Ankle Fixator For Distal Tibial Fragment (PEEK)
- XCaliber External Fixator Hybrid Articulated Ankle Fixator - Designed for distal tibial fragment fixation - Made of PEEK material - Includes self-tapping screws in various sizes - Comes with a T-Wrench and Spanner for ease of use

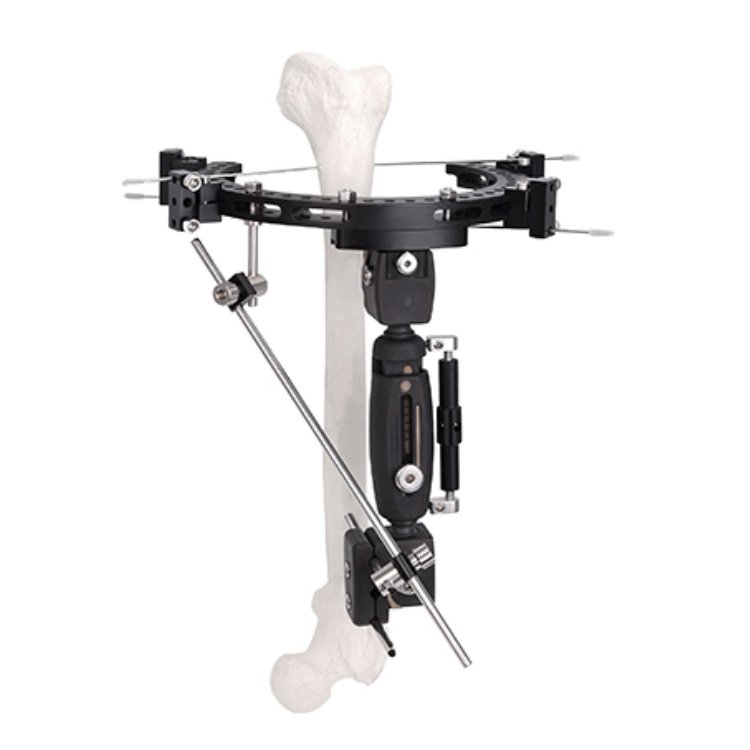

XCaliber External Fixator Hybrid Ring Frame Combination (PEEK)
- All-in-One package for fixation of complex proximal and distal tibial fractures - Made of radiolucent material, lighter than traditional fixators - Minimizes soft-tissue interference, promoting faster fracture recovery - Includes fixators and tools for convenience - Ideal for comprehensive treatment of challenging fractures

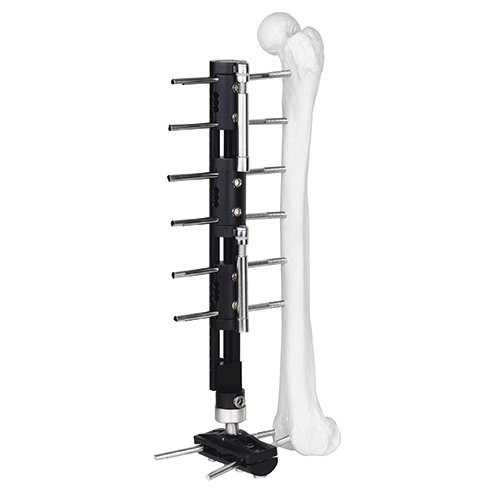

Bone Lengthening External Fixator - Type C
- Type C Bone Lengthening External Fixator - Includes 6*150mm pins (4 pieces) and HB6.0*150mm (2 pieces) - Comes with a 6mm hex wrench and screwdriver - Total length of the fixator is 300mm - Ideal for bone lengthening procedures
Bone Lengthening External Fixator - Type B
- External fixator for bone lengthening procedures - Available in two lengths: 250mm and 300mm - Each set includes 6 * 150mm pins, 6mm hex wrench, and 6mm screwdriver - Ideal for orthopedic surgeons performing bone lengthening surgeries - Helps in stabilizing and supporting the bone during the lengthening process

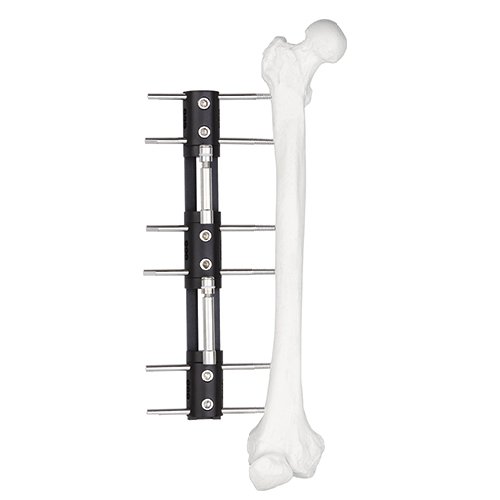

Bone Lengthening External Fixator - Type A
