Spirometer Pulmonary Lung Function Spirox Plus
FREE SHIPPING! Delivery in 3 Days
-Spirometer Plus is a hand-held equipment for checking lung conditions,
-Diagnose Pneumonia,
-Adopts the infrared mode for measuring relative items,
-Applicable for hospital, clinic, family for routine test.
Original price was: $390.00.$359.00Current price is: $359.00.
Guaranteed Safe Checkout
Frequently Bought Together
Spirometer Pulmonary Lung Function Spirox Plus
Original price was: $390.00.$359.00Current price is: $359.00.
Mouthpiece for Spirometer (20 PCS Pack)
Features & Compatibility

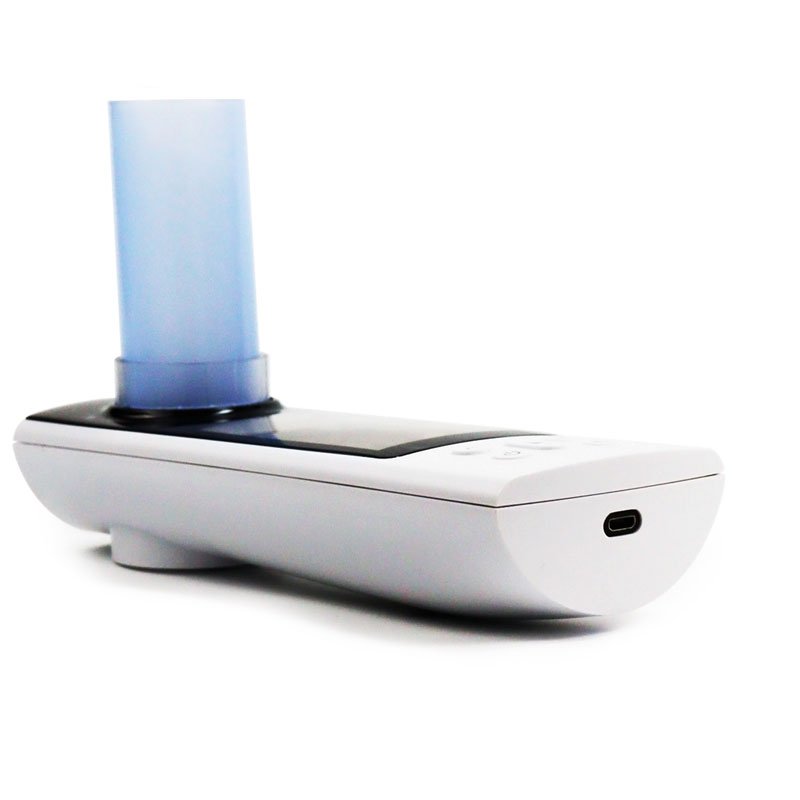

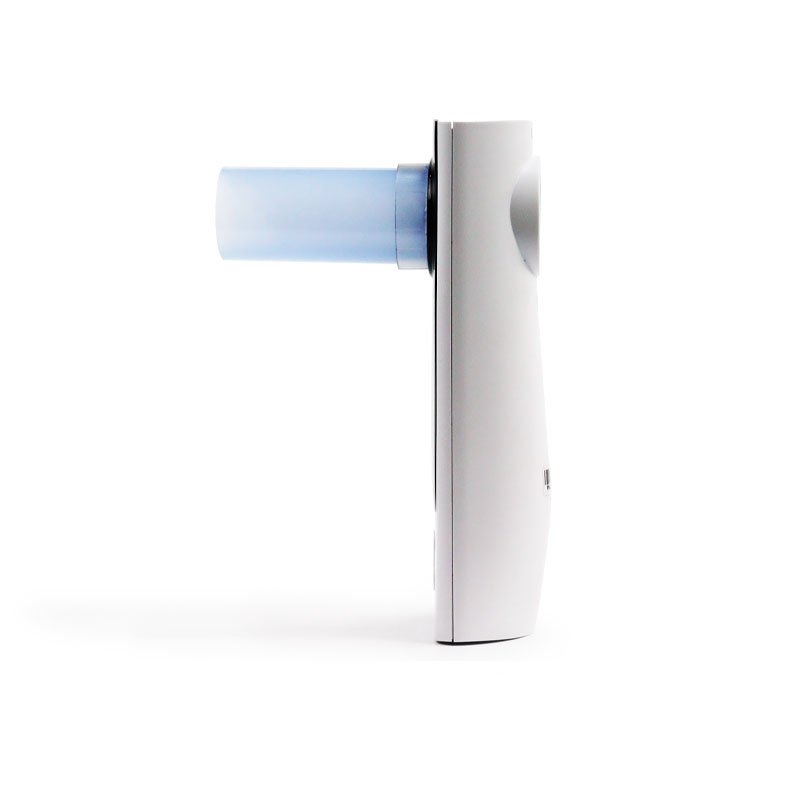

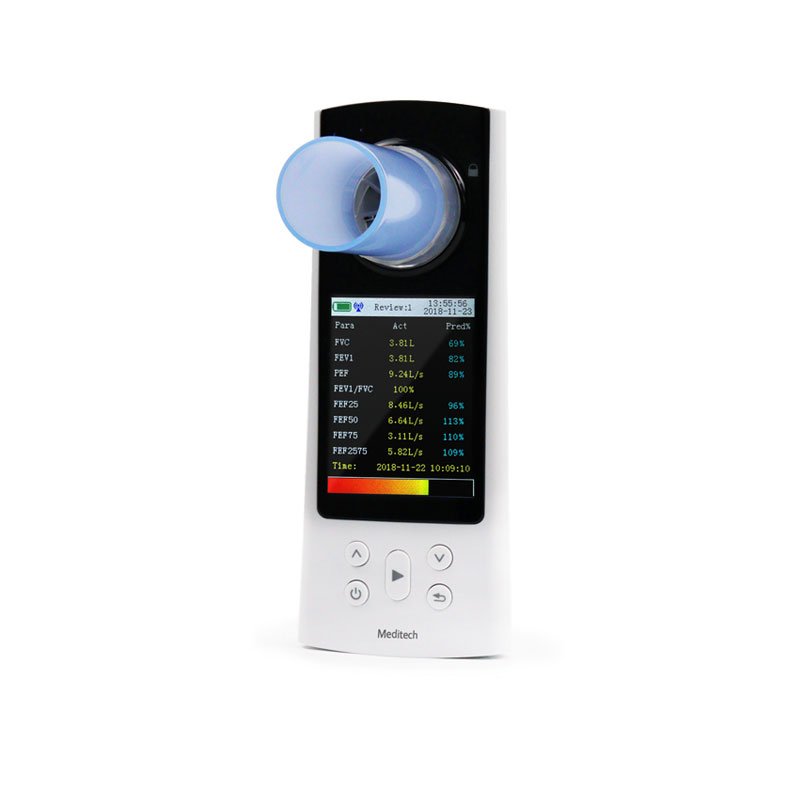

Spirometer Pulmonary Lung Function Spirox Plus
Advanced hand-held spirometry system for comprehensive lung function assessment. The Spirox Plus delivers accurate pulmonary diagnostics with infrared measurement technology, large color display, and integrated PC software for clinical reporting and trend analysis.
Clinical overview
The Spirox Plus is a modern, hand-held spirometer designed for rapid and accurate assessment of pulmonary function across diverse clinical settings. Featuring a large 2.8-inch color TFT-LCD display and infrared measurement technology, the device enables clinicians to diagnose respiratory conditions including pneumonia, obstructive and restrictive airway disease, and monitor treatment response. The 2019/2020 Plus version integrates Bluetooth connectivity, rechargeable lithium battery, and comprehensive PC software for data management, trend analysis, and professional report generation.
Ideal for hospitals, outpatient clinics, occupational health programs, and family medicine practices, the Spirox Plus combines portability with clinical-grade measurement accuracy. Automatic calibration, data memory with review and deletion functions, and intuitive user prompts ensure reliable operation by both respiratory technicians and general practitioners.
Key features & surgeon benefits
Comprehensive Pulmonary Parameters
- FVC (Forced Vital Capacity) and FEV1 (Forced Expired Volume in 1 second)
- FEV1/FVC ratio for obstruction assessment
- Peak expiratory flow (PEF) and flow rates at 25%, 50%, 75% of FVC
- Flow-volume and volume-time curve display for visual interpretation
Intuitive Operation & Connectivity
- Large 2.8-inch color display with 240×320 resolution for clear readability
- Built-in Bluetooth module for wireless data transfer to PC or mobile devices
- USB socket for direct PC connection and software integration
- Automatic power-off after 2 minutes of inactivity; battery status display
Professional Reporting & Trend Analysis
- Integrated PC software with printing and report generation capabilities
- Data memory, review, and deletion functions for patient record management
- Trend chart display for longitudinal patient monitoring
- Predicted vs. measured value ratio display for clinical interpretation
Mobile & Reliable Operation
- Hand-held design for point-of-care testing in any clinical environment
- Rechargeable lithium battery (DC 3.7 V) with USB charging included
- Low working current (200 mA) for extended battery life
- Automatic calibration and information prompts for out-of-range measurements
Technical specifications
| Display | 2.8-inch color TFT-LCD, 240×320 resolution |
|---|---|
| Volume range | 0–10 L |
| Volume accuracy | ±3% or ±0.05 L (whichever is greater) |
| Flow range | 0–16 L/s |
| Flow accuracy | ±5% or ±0.2 L/s (whichever is greater) |
| Power supply | DC 3.7 V rechargeable lithium battery |
| Working current | 200 mA |
| Safety class | Internally powered equipment, type BF applied part |
| Connectivity | USB socket, built-in Bluetooth module |
| Battery display | Yes |
| Auto power-off | 2 minutes of inactivity |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Spirometer unit | Spirox Plus hand-held spirometer with 2.8-inch color display | 1 |
| Mouthpiece | Disposable or reusable mouthpiece for patient interface | 1 |
| USB cable | USB cable for PC connection and data transfer | 1 |
| USB charger | USB power adapter for battery charging | 1 |
| Cleaning cloth | Microfiber cloth for device maintenance | 1 |
| PC software | Spirox Plus software with reporting and trend analysis (download available) | 1 |
| User manual | Complete user manual and technical documentation (PDF download) | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, arrange a demonstration, or discuss customisation options for your clinical setting. Free shipping available with 3-day delivery on standard orders.
Email: info@orthopedicdrills.com
Software download: Spirometer Software | User Manual
