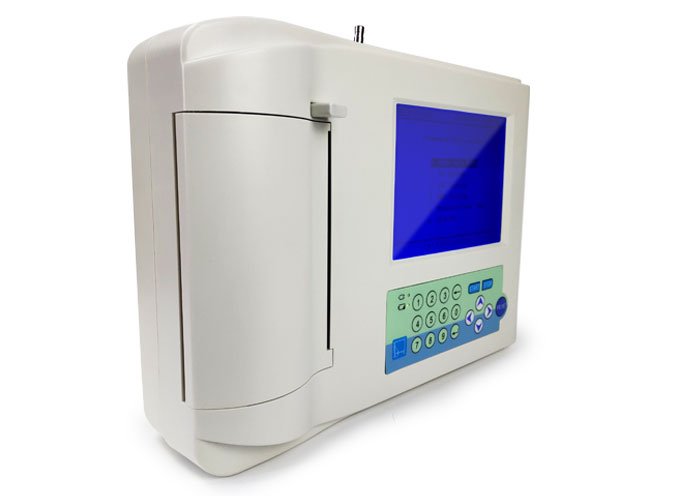

Spirometer Pro

The portable pulmonary function measurement instrument can be used to measure:

                    Vital capacity (VC)

                    Forced vital capacity (FVC)
Maximum Ventilator Volume (MVV).

Measurement algorithm refers to the ITS ERS standards of the American Thoracic Society (ATS)

Adopting pressure-flow sensor sensitive precise easy to launder clean and durable

All parameters can be displayed on large screen(320 x 240)

Built-in memory can store maximum 300 cases of patient measurement results

The instrument can calibrate automatically all English operation more convenient to operate
110mm thermal printer built-in can print out a clear clinical report predicted value measured value

Compact and flexible

SpioSoft PC Software for data transfer (Options)

Measurement methods:
Flow velocity detection:  Screen type pneumotachograph flow sensor
Capacity detection:      flow integration

Patient Data:

Patient   information input	Patient ID	ID No.: XXXXXX	ID No.: XXXXXX
	Gender	Gender:	Gender:
	Age	Age:	Age:	Years old
	Height	Height:	Height:	cm
	Weight	Weight:	Weight:	kg
	Race	Race:	Race:
	Temperature	Temperature:	Temperature:	℃
	Humidity	Humidity:	Humidity:	%
	Atmosphere	Atmosphere:	Atmosphere:	mmHg

Measuring range
Capacity range:         0L ~ 9L
F low velocity range: 0 ~ 14L / s

Measurement accuracy
Capacity:                     0L ~ 1.6L (± 50ml)
6L ~ 9L (± 3%)
Flow rate:                    5% or 0.2L / s
Respiratory rate:          4 / 20 ~ / min (± 1 / min)
20 / 60 / min (error: ± 5%)

Measuring time limit and degree
VC:                        50s per time, measuring 3 times
FVC:                      25s per time, measuring 3 times
MVV:                     12 seconds per time, measuring 3 times

	PARAMETER DESCRIPTION	DISPLAY	PRINT	UNIT
VC Test	Vital capacity，Maximum inspiration volume or Maximum exhalation volume	VC	VC	L
	Tidal volume	TV	TV	L
	Expiratory reserved volume	ERV	ERV	L
	Inspiratory reserved volume	IRV	IRV	L
	Inspiratory capacity	IC	IC	L
FVC Test	Forced vital capacity	FVC	FVC	L
	Forced expiratory volume at 0.5sec	FEV0.5	FEV0.5	L
	Forced expiratory volume at 1sec	FEV1.0	FEV1.0	L
	Forced expiratory volume at 3sec	FEV3.0	FEV3.0	L
	Forced expiratory volume1sec / Forced vital capacity	FEV1.0/G	FEV1.0/G	%
	Forced expiratory volume1sec / vital capacity	FEV1.0%T	FEV1.0%T	%
	Forced expiratory volume at 3sec / Forced vital capacity	FEV3.0%G	FEV3.0%G	%
	Forced expiratory volume at 3sec / vital capacity	FEV3.0%T	FEV3.0%T	%
	Extrapolated volume	Vext	Vext	L
	Expiratory time	EX Time	EX Time	s
	Maximal mid-expiratory flow	MMF	MMF	L/s
	Peak expiratory flow	PEF	PEF	L/s
	Mid(forced)-expiratory flow at 75%	MEF75	MEF75	L/s
	Mid(forced)-expiratory flow at 50%	MEF50	MEF50	L/s
	Mid(forced)-expiratory flow at 25%	MEF25	MEF25	L/s
	Forced inspiratory vital capacity	FIVC	FIVC	L
	Forced inspiratory volume at 0.5sec	FIV0.5	FIV0.5	L
	Forced inspiratory volume at 1.0sec	FIV1.0	FIV1.0	L
	Ratio of FIV1.0divided by FIVC	FIV1.0/FVC	FIV1.0/FVC	%
	Ratio of FIV1.0divided by FVC	FIV1.0/FIVC	FIV1.0/FIVC	%
	Peak inspiratory flow	PIF	PIF	L/s
	Inspiratory flow at 50%	MIF50%	MIF50%	L/s
MVV Test	Maximum voluntary ventilation	MVV	MVV	L/min
	Respiration rate	RR	RR	/min
	Tidal volume	TV	TV	L

Display (LCD): 320 * 240 dot-matrix
printer: 110mm thermal printer
Data: 10 integral records

Other Note

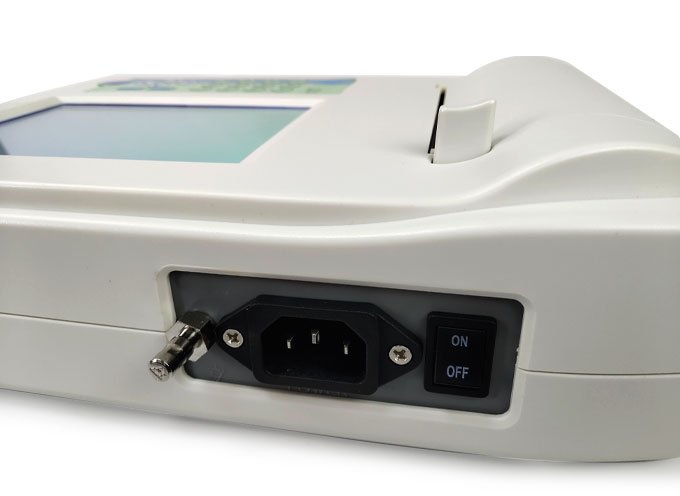

Power: A.C. 100~220V 50/60Hz
The type of security: I Class B type

Transport and storage note
Ambient temperature range:-20°C ~ 55°C;
Relative humidity range: ≤ 93%;
Atmosphere pressure range: 500hPa ~ 1060hPa;

Working note
Surrounding temperature range: 10°C ~ +40°C;
Relative humidity range: 30% to 75%;
Atmosphere pressure range: 700hPa ~ 1060hPa;

Options:
SpioSoft PC Software for data transfer (Options)

Standard:

Antibacterial – Viral Filter  …… 1Pcs

Single use mouth set   ……….. 1Pcs

Nose clip   ………………………… 1Pcs
Ground Wire    ………………….. 1Pcs
Power cable  …………………….. 1Pcs
Cleaning Cloth  …………………. 1PcsOptions:USB Cable   ……………………… 1Pcs
