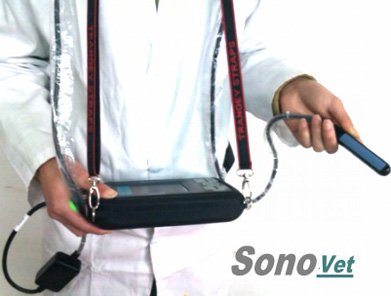

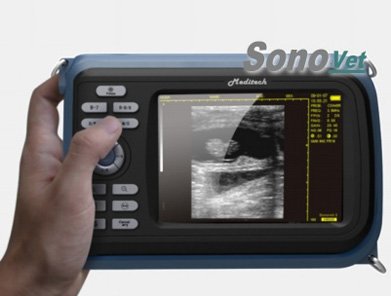

Sonovet Palm Veterinary Ultrasound Scanner with Rectal Probe

Sonovet Palm Veterinary Ultrasound Scanner – Features & Specifications

Monitor & Display

• Screen Size: 5.5-inch TFT display (Optional: 7-inch)

• Gray Scale: 256 levels

• Display Modes: B, B+B, 4B, B+M, M

• Image Magnification: ×1.0, ×1.2, ×1.5, ×2.0

• Character Display: Real-time clock, patient ID, sex, age, focusing info, and gain settings (Near, Far, Overall)

Imaging & Processing

• Advanced Image Processing: DFS, DRF, RDA, VGA/DSC, and post-processing functions

• Memory & Storage:

• 256 frames cine-memory

• 64-image permanent storage

• CINE LOOP: ≥400 frames

• Permanent memory: 128 frames

• Digital Technology: Full digital beam-forming technology with automatic probe identification

• Enhancements: Gamma correction, histogram, and scanning angle adjustment

Scanning & Probes

• Scanning Methods: Convex, Micro-convex, Linear, Rectal

• Standard Probe: L60/6.5MHz Rectal Linear Probe

• Optional Probes:

• R40/3.5MHz Convex Probe

• R20/5.0MHz Micro-convex Probe

• L40/7.5MHz Linear Probe

• 6.5MHz Transvaginal Probe (Multi-frequency: 6.5, 7.5MHz)

• 5.0MHz Micro-convex Probe (Multi-frequency: 4.5, 5.0, 5.5MHz)

Connectivity & Data Transfer

• USB 2.0 Port: Supports real-time image uploading to PC and U-disk storage

• TV Output: PAL-D/NTSC compatibility for video recording and workstation integration

• Mouse Interface: Allows for easier operation

Measurement & Reporting

• Measurement Capabilities:

• Distance, Circumference/Area

• Time/Heart Rate/EF rate (for cardiac assessment)

• Obstetric Measurements: GS, CRL, BPD, HC, FL, AC

• OB/GYN Functions: Gestational age, fetal weight, and EDD calculation

• Body Marks & Calipers: 15 types with various measurement options

• Clinic Report Generation: Automatic report creation for efficient documentation

Build & Performance

• Net Weight: Only 0.8kg – lightweight and portable

• Operating Time: ≥2 hours on battery power

• Autonomous Display Depth: ≥220mm with multiple depth adjustments

• Image Adjustments: Left/right, up/down, brightness, contrast ratio, focus number, focal position

Optional Accessories

• Ultrasound Goggles – Enhanced visualization for fieldwork

• Car Lighter Adapter – Convenient for mobile veterinary use

• Video Printer – For instant hard-copy reports

🚀 FREE SHIPPING | 3-Day Delivery | Compact & Portable for Veterinary Use 🚀
