Knee Joint External Fixator
- Includes 4 rings for stabilization
- Comes with 1 foot ring for additional support
- Includes 1 annular diagonal tie for secure fixation
- Features 2 posts with 4 edges each for durability
- Includes 2 single joints for flexibility
- Comes with 16 pin clamps for easy adjustment
- Includes 12 M6 threaded rods for customization
- SKU
- 6100-1208
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Knee Joint External Fixator
Comprehensive modular external fixation system designed for knee joint stabilization and correction. Features four stabilization rings, foot ring support, and precision pin clamps for secure, adjustable fixation. Ideal for complex knee trauma, deformity correction, and limb lengthening procedures.
Clinical overview
The Knee Joint External Fixator is a modular, ring-based system engineered for precise stabilization and correction of complex knee pathology. The four-ring configuration provides superior load distribution and multi-planar control, while the integrated foot ring extends support to the distal tibia and ankle complex. This system is particularly valuable in acute trauma management, chronic deformity correction, and limb lengthening procedures where anatomical alignment and patient mobility are critical.
The comprehensive component set—including 16 pin clamps, 12 M6 threaded rods, and dual single joints—enables surgeons to customize fixation geometry to individual patient anatomy and clinical objectives. The annular diagonal tie enhances frame rigidity and reduces construct micromotion, promoting faster bone healing and improved clinical outcomes.
Key features & surgeon benefits
Comprehensive Ring Architecture
- Four stabilization rings for multi-level fixation
- Dedicated foot ring for distal support
- Dual single joints for enhanced articulation
Precision Assembly & Adjustment
- 16 pin clamps for rapid, secure fixation
- 12 M6 threaded rods for custom geometry
- Modular design enables intraoperative reconfiguration
Cost-Effective Comprehensive Solution
- Complete kit reduces need for additional purchases
- Durable stainless steel construction minimizes replacement
- Reusable components across multiple cases
Flexible Modular Design
- Annular diagonal tie for enhanced rigidity
- Posts with 4 edges for multi-directional mounting
- Adaptable to various patient anatomies and pathologies
Technical specifications
| Indications | Knee joint trauma, deformity correction, limb lengthening, joint stabilization |
|---|---|
| Sizes / range | As applicable |
| Material | Stainless Steel |
| Sterilisation | Autoclavable |
| Packaging | Complete kit in protective case |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Rings | Stabilization rings for multi-level fixation | 4 |
| Foot Ring | Distal support ring for ankle/foot complex | 1 |
| Annular Diagonal Tie | Diagonal connector for enhanced frame rigidity | 1 |
| Posts | Posts with 4 edges for durable multi-directional mounting | 2 |
| Single Joints | Articulation joints for flexible fixation geometry | 2 |
| Pin Clamps | Secure clamps for pin and rod fixation | 16 |
| M6 Threaded Rods | Customizable connecting rods for frame assembly | 12 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, availability, and customization options for the Knee Joint External Fixator. We provide rapid quotes and technical support for surgeons and hospital procurement teams.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →
Talipes Equinovarus & Equinovalgus External Fixator
- Complete external fixator set for treating talipes equinovarus and equinovalgus - Includes rings, foot ring, L connecting pieces, half ring, annular diagonal tie, single joints, threaded rods, and pin clamps - Consists of 2 rings, 1 foot ring, 2 L connecting pieces, 1 half ring, 1 annular diagonal tie, 2 single joints, 3 threaded rods, and 14 pin clamps - High-quality materials for durability and stability during treatment - Easy to assemble and adjust for personalized patient care
Ring Fixator For Tibial & Femur Fracture
- Includes 1 ring fixator with 1 ear and 1 ring fixator with six ears - Comes with 6 standard posts for secure attachment - Specifically designed for tibial and femur fractures - Helps stabilize and support the affected limb during the healing process - Easy to assemble and adjust for personalized comfort and fit
Talipes Equinovarus & Equinovalgus & Bone Lengthening External Fixator
- Complete set for treating Talipes Equinovarus & Equinovalgus and Bone Lengthening - Contains essential components such as rings, foot ring, connecting pieces, and half-ring - Also includes annular diagonal tie, inner threaded posts, single joints, M6 threaded rods, and pin clamps - Consists of 4 rings, 1 foot ring, 2 connecting pieces, 1 half-ring, 1 annular diagonal tie, 4 inner threaded posts, 2 single joints, 8 M6 threaded rods, and 24 pin clamps - High-quality materials for durable and effective treatment
Elbow Joint Fixator
- Includes 4 rings, 1 annular diagonal tie, and 2 single joints - Comes with 8 M6*200 threaded rods and 16 pin clamps for secure fixation - Features a 2-hole connecting plate for added stability - Ideal for stabilizing and immobilizing the elbow joint - Helps in post-surgery recovery and rehabilitation

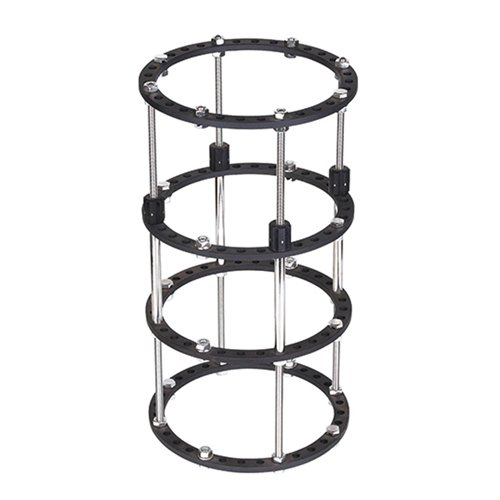

Ring Fixator For Tibial & Femur Fracture
