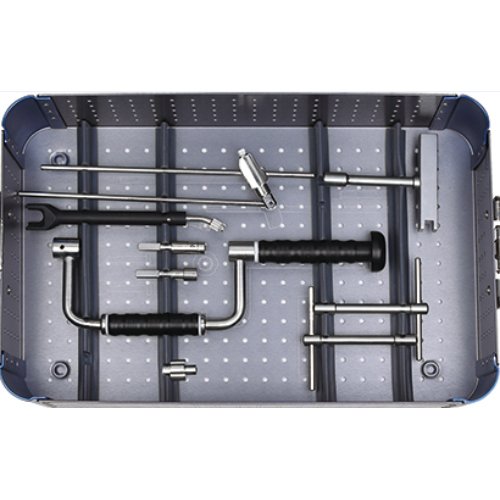

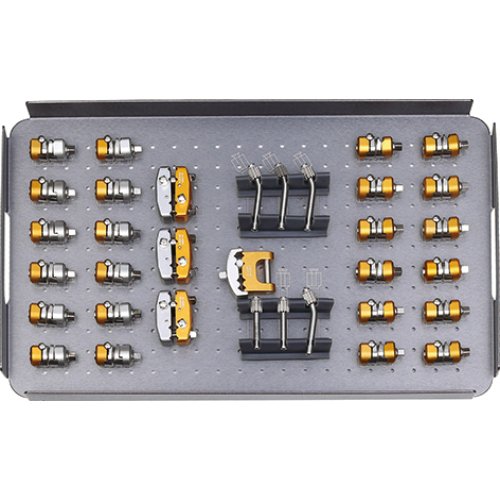

Hoffmann External Fixation Small Fragment Set
- The Hoffmann External Fixation Small Fragment Set includes a variety of essential components for external fixation procedures.
- This set contains rod and pin couplings, pin clamps, posts, apex pins, drill sleeves, carbon fiber connecting rods, wrenches, and other accessories.
- It includes items like straight and angled posts, self-drilling apex pins in different sizes, and carbon fiber connecting rods of various lengths.
- Also included are specialized tools such as T-shaped clamp wrench, reduction wrench, elbow joint, and pin wrenches in different sizes.
- The set comes in an aluminum box for easy storage and transportation, making it convenient for medical professionals performing small fragment external fixations.
- SKU
- 7100-01
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Hoffmann External Fixation Small Fragment Set
A comprehensive modular external fixation system designed for small fragment orthopedic procedures. This complete set includes rod and pin couplings, pin clamps, posts, self-drilling apex pins, carbon fiber connecting rods, and specialized surgical tools. Engineered for precision, stability, and ease of assembly in trauma and reconstructive surgery.
Clinical overview
The Hoffmann External Fixation Small Fragment Set is a modular, versatile system for managing small fragment fractures and complex orthopedic reconstructions. The set combines precision-engineered couplings, clamps, and posts with self-drilling apex pins and lightweight carbon fiber connecting rods to provide surgeons with maximum flexibility in frame configuration and patient-specific fixation strategies.
Designed for both primary trauma management and secondary reconstruction, this system supports multi-planar fixation with minimal soft tissue disruption. The inclusion of specialized wrenches, chucks, and an arc drilling stand ensures efficient intraoperative handling and accurate pin placement, while the aluminum storage box facilitates organization and transport in busy surgical environments.
Key features & surgeon benefits
Flexible Frame Configuration
- Rod-rod and rod-pin couplings for multi-planar assembly
- Straight and 30° angled posts for anatomic alignment
- Multiple connecting rod lengths (120–200mm) for variable span
Accurate Pin Placement
- Self-drilling apex pins in 3mm and 4mm diameters
- Dedicated drill sleeves for controlled trajectory
- Arc drilling stand for reproducible angulation
Efficient Surgical Workflow
- T-shaped clamp wrench and pin wrenches for rapid assembly
- Apex pin chucks for secure handling during insertion
- Reduction wrench for frame adjustment and fine-tuning
Lightweight & Durable
- Carbon fiber connecting rods reduce frame weight and radiolucency
- Stainless steel couplings and clamps for corrosion resistance
- Aluminum storage box for convenient organization and transport
Technical specifications
| Indications | Small fragment fracture fixation, trauma reconstruction, orthopedic external fixation |
|---|---|
| Sizes / range | 3mm and 4mm apex pins; 5mm rods; connecting rods 120–200mm lengths |
| Material | Stainless steel (couplings, clamps, posts), carbon fiber (connecting rods), aluminum (storage box) |
| Sterilisation | Steam sterilizable; supplied non-sterile |
| Packaging | Aluminum storage box with foam insert |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Rod-Rod Coupling (5mm Rod) | 12 |
| 2 | Rod-Pin Coupling (3/4mm Pin, 5mm Rod) | 12 |
| 3 | 4-Hole Pin Clamp (3/4mm Pin) | 3 |
| 4 | Pin Clamp (3/4mm Pin) | 1 |
| 5 | Straight Post | 2 |
| 6 | 30 Degree Angled Post | 4 |
| 7 | Apex Pin Self-drilling 3×80mm | 4 |
| 8 | Apex Pin Self-drilling 3×100mm | 4 |
| 9 | Apex Pin Self-drilling 4×80mm | 4 |
| 10 | Apex Pin Self-drilling 4×100mm | 4 |
| 11 | Apex Pin Self-drilling 4×120mm | 4 |
| 12 | Drill Sleeve 3mm | 1 |
| 13 | Drill Sleeve 4mm | 1 |
| 14 | Carbon Fiber Connecting Rod 5×120mm | 4 |
| 15 | Carbon Fiber Connecting Rod 5×150mm | 4 |
| 16 | Carbon Fiber Connecting Rod 5×180mm | 2 |
| 17 | Carbon Fiber Connecting Rod 5×200mm | 4 |
| 18 | T-shaped Clamp Wrench 5# | 1 |
| 19 | Reduction Wrench | 1 |
| 20 | Elbow Joint 5mm | 1 |
| 21 | Apex Pin Chuck 3mm | 1 |
| 22 | Apex Pin Chuck 4mm | 1 |
| 23 | T-shaped Pin Wrench 3mm | 1 |
| 24 | T-shaped Pin Wrench 4mm | 1 |
| 25 | Arc Drilling Stand | 1 |
| 26 | Adjust Wheel | 1 |
| 27 | Aluminum Box | 1 |
