BJ5504 Cranial drill (System 5500)
- Powerful cranial drill designed for cranial surgery applications
- Ergonomic design for comfortable handling during surgeries
- Autoclavable for easy sterilization
- Imported motor for low noise and long service life
- Warranty for 2 years for peace of mind
- Automatically stops after drilling through cranial bone to prevent damage to brain tissue.
- SKU
- 01F711A6136C
- Brand
- Bojin
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
BJ5504 Cranial Drill (System 5500)
A precision-engineered cranial drill designed for safe, controlled bone removal in neurosurgical procedures. Features automatic depth control to prevent inadvertent penetration into intracranial structures, ergonomic handling, and a low-noise imported motor for extended operative use.
Clinical overview
The BJ5504 cranial drill is purpose-built for neurosurgical applications requiring precise, controlled bone removal with minimal risk of soft tissue injury. The integrated auto-stop mechanism activates upon breakthrough of the cranial cortex, preventing unintended advancement into the subdural space and protecting underlying neural tissue. This safety feature is critical in procedures such as burr hole placement, craniotomy flap elevation, and decompressive craniectomy.
The ergonomic design ensures comfortable handling during extended operative time, while the low-noise imported motor (≤40 dB) reduces fatigue and maintains acoustic clarity in the operating theatre. Full autoclavability at 135°C simplifies sterilisation protocols and supports high-throughput surgical schedules.
Key features & surgeon benefits
Automatic Depth Control
- Auto-stop mechanism prevents breakthrough injury
- Protects intracranial structures from inadvertent trauma
- Reduces operative risk in critical anatomical zones
Ergonomic & Efficient
- Lightweight, balanced design for extended use
- Variable speed control (0–1000 rpm) for precision
- Low noise operation (≤40 dB) maintains OR clarity
Long Service Life
- Imported motor engineered for reliability
- 2-year manufacturer warranty included
- Fully autoclavable for repeated sterilisation
Consistent Power Output
- ≥105 W output power for efficient bone removal
- 3.3 Nm torque for controlled cutting
- 14.4 V operation ensures consistent performance
Technical specifications
| Indications | Cranial surgery, burr hole creation, bone flap elevation, decompressive craniectomy |
|---|---|
| Output Power | ≥105 W |
| Speed Range | 0–1000 rpm |
| Torque | 3.3 Nm |
| Operating Voltage | 14.4 V |
| Noise Level | ≤40 dB |
| Sterilisation | Autoclavable at 135°C |
| Material | Stainless steel and medical-grade polymer |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| BJ5504 Cranial Drill Unit | Complete cordless drill with auto-stop mechanism, variable speed control, and ergonomic handle | 1 |
| Charging Base | 14.4 V charging dock with power adapter | 1 |
| Drill Bits (Assorted) | Selection of cranial burrs and cutting tips | As applicable |
| Sterilisation Case | Protective carrying and storage case | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the BJ5504 cranial drill, request a demonstration, or arrange a trial unit for your surgical centre. We provide comprehensive technical support and customisation options.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →
BJ5503B Cannulated drill
- Powerful 250W output power for efficient operation - Adjustable speed ranges from 0-650 to 0-1000 RPM for versatility - 4.5 Nm torque for reliable performance - Operates at a low noise level of ≤40 db for a quiet surgical environment - Ergonomically designed for comfort and ease of use - Comes with a 2-year warranty for peace of mind

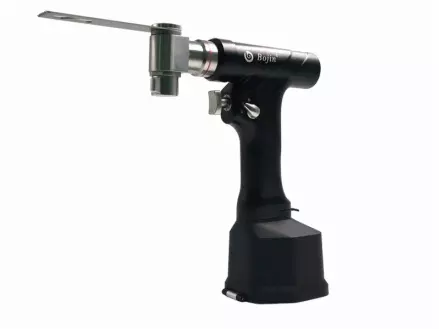

BJ5501 Sagittal saw
