BJ1403 Cannulated Drill (System 1400)
- Autoclavable cannulated drill for K-wires and intramedullary interlocking nail surgery
- Imported motor with low noise and high speed for precise alignment
- Output power of 85w and torque of 3.3 Nm for efficient operations
- Comes with a one-year warranty, guaranteeing long service life
- Standard configuration includes handpiece, battery, charger, and more
- SKU
- 9221F625C5FD
- Brand
- Bojin
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

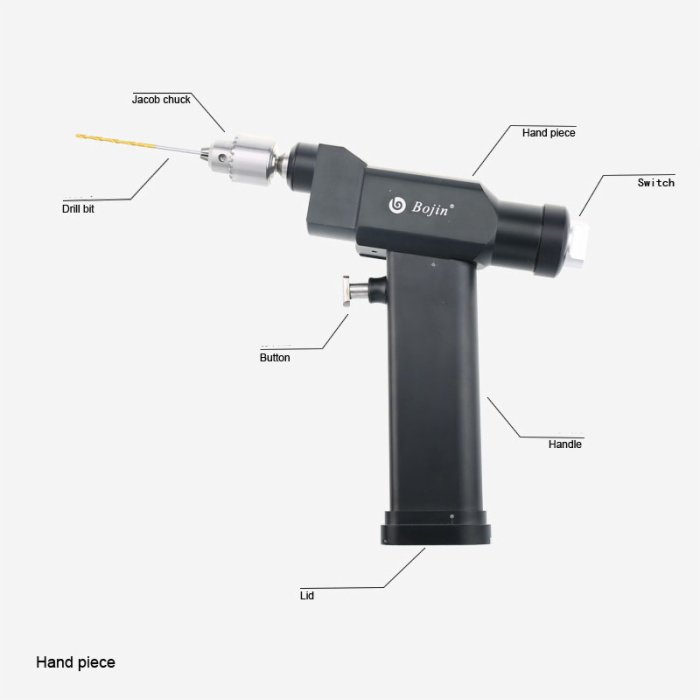

BJ1403 Cannulated Drill (System 1400)
Autoclavable cannulated drill system designed for K-wire and intramedullary interlocking nail surgery. Features an imported low-noise motor with high-speed precision alignment, 85W output power, and 3.3 Nm torque for efficient surgical operations. Ergonomic design with complete sterilization capability at 135°C.
Clinical overview
The BJ1403 cannulated drill is engineered for precision in K-wire fixation and intramedullary interlocking nail procedures. Its ergonomic design combined with full autoclavability at 135°C ensures reliable sterilization without motor degradation. The imported motor delivers consistent low-noise operation (≤40 dB) with high-speed capability, enabling surgeons to maintain precise alignment throughout the procedure.
Variable speed control (0–630 rpm) and 3.3 Nm torque provide optimal performance across diverse surgical applications. The system supports quick reamer changes during surgery, enhancing workflow efficiency. Nickel-metal hydride battery technology offers environmentally friendly operation with extended service life when properly maintained.
Key features & surgeon benefits
High-speed precision drilling
- Variable speed 0–630 rpm for optimal control
- 85W output power with 3.3 Nm torque
- Low noise operation (≤40 dB)
Full autoclavability
- Complete handpiece sterilization at 135°C
- Improved type supports up to 155°C
- Eliminates bacilli and viruses effectively
Rapid reamer exchange
- Compatible with flexible reamers
- Quick reamer changes during procedure
- Ergonomic handpiece design for extended use
Eco-friendly battery technology
- Nickel-metal hydride battery system
- Extended service life with proper maintenance
- Battery removal post-surgery preserves capacity
Technical specifications
| Output power | 85W |
|---|---|
| Speed (rpm) | 0–630 |
| Torque (Nm) | 3.3 |
| Operating voltage | 9.6V |
| Noise level (dB) | ≤40 |
| Sterilisation | 135°C autoclavable (improved type ≤155°C, 1.6 MPa) |
| Indications | K-wire fixation, intramedullary interlocking nail surgery, arthroscopic procedures |
| Material | Medical-grade stainless steel, nickel-metal hydride battery |
| Packaging | Standard configuration with handpiece, battery, charger, aseptic battery transfer ring, manual, and guarantee card |
| Warranty | Handpiece: 1 year; Battery and consumables: 3 months |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | BJ1403 cannulated drill handpiece with ergonomic design | 1 |
| Battery | Nickel-metal hydride rechargeable battery (9.6V) | 1 |
| Charger | Standard battery charger unit | 1 |
| Aseptic battery transfer ring | Sterile transfer device for battery management | 1 |
| Operating manual | Comprehensive user and maintenance guide | 1 |
| Guarantee card | Warranty documentation (1 year handpiece, 3 months battery) | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the BJ1403 cannulated drill system, request a detailed quote, or arrange a product demonstration. We offer flexible ordering options and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
