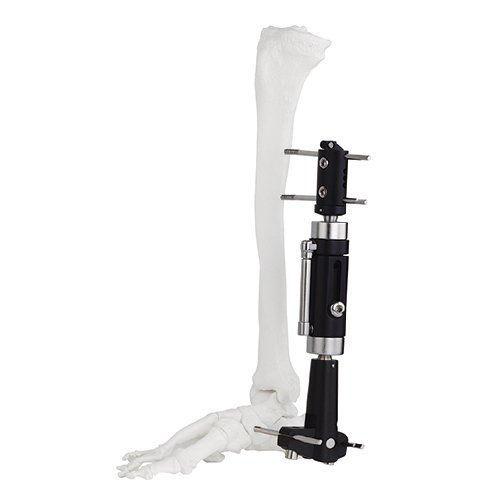

Ankle Joint Fragment External Fixator
- External fixator for ankle joint fragments
- Available in sizes XL, L, and M
- Includes 4 pieces of 6*150mm pins for XL, 6*130mm pins for M
- Comes with a 6mm hex wrench and screwdriver
- Ideal for stabilizing and supporting ankle joint fractures
- SKU
- 6100-05000
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Ankle Joint Fragment External Fixator
Precision external fixation system designed for stabilization and support of ankle joint fractures. Available in three sizes (M, L, XL) with comprehensive instrumentation for secure fragment reduction and alignment during healing.
Clinical overview
The Ankle Joint Fragment External Fixator is engineered for optimal stabilization of complex ankle fractures and fragment reduction. This system provides surgeons with precise control over fragment alignment while maintaining patient comfort during the healing phase. The modular design accommodates varying anatomical requirements across patient populations, from pediatric to adult cases.
With three size options (M, L, XL) and comprehensive instrumentation, this fixator supports both primary fracture management and revision procedures. The system's robust construction ensures reliable performance in demanding clinical environments while maintaining ease of application and adjustment throughout the treatment course.
Key features & surgeon benefits
Secure Fragment Fixation
- Multi-pin configuration for enhanced rotational control
- Precision-engineered pin geometry for optimal bone purchase
- Reliable load distribution across fracture sites
Intuitive Application
- Comprehensive instrumentation included in each set
- 6mm hex wrench and screwdriver for rapid assembly
- Minimal learning curve for surgical teams
Multi-Size Range
- Three sizes (M, L, XL) for diverse patient anatomy
- Flexible pin configurations for complex fracture patterns
- Suitable for primary and revision procedures
Cost-Effective Solution
- Complete instrumentation reduces additional purchases
- Durable construction minimizes replacement frequency
- Competitive pricing with 2-year manufacturer warranty
Technical specifications
| Indications | Ankle joint fractures, fragment stabilization and reduction |
|---|---|
| Sizes / range | M, L, XL |
| Material | Surgical steel |
| Sterilisation | As applicable |
| Packaging | Complete system with instrumentation |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Fixator Frame | External fixator body (size M, L, or XL) | 1 |
| Pins (XL/L) | 6×150mm surgical pins | 4 |
| Pins (M) | 6×130mm surgical pins | 4 |
| Hex Wrench | 6mm hex wrench for assembly and adjustment | 1 |
| Screwdriver | 6mm screwdriver for instrumentation | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss clinical applications, or arrange a product demonstration. We provide comprehensive support for all orthopedic fixation systems.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
